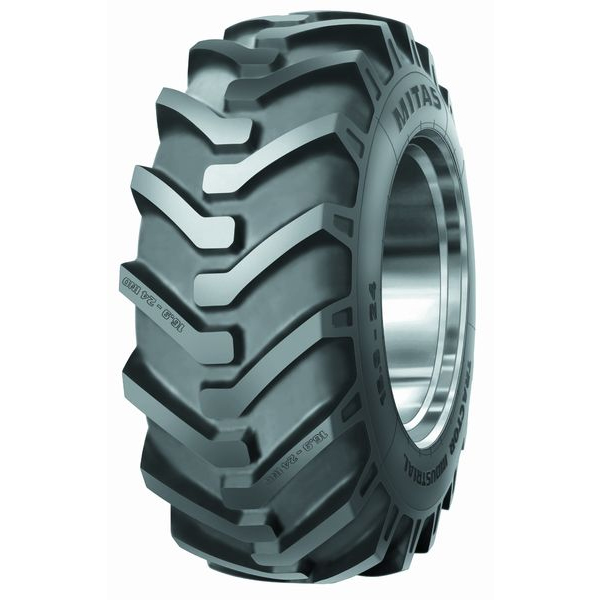

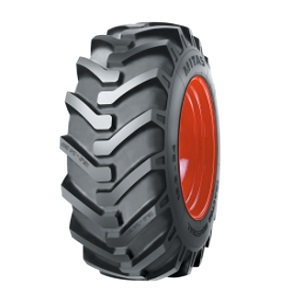

16.9-24 Mitas TI-04 Ind Tractor R-4 F (12 Ply), 149A8 100%
Stock Number:
5001510789000
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Industrial tread pattern for use on backhoe loaders with 4 × 4 axles.
- solid tires that provide more stability and traction
- resistant to cuts on rough surfaces
- Provide good traction due to its tread pattern
- Has very good stability due to strong sidewalls
- Can be used on road and rough surfaces
| Stock No. | 5001510789000 |
| Brand | Mitas |
| Model/Style | TI-04 Ind Tractor |
| Tread Style | (R-4) Agricultural Industrial Tractor |
| Tire Size | 16.9-24 |
| Rim Width | 14.25", 14.5", 14.63", 14", 15" |
| Preferred Rim | |
| RCI Group | 39 (49.66" - 52.30") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 173.0 |
| Diameter | 51.61 |
| Width | 16.9 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 24.03 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | F (12 Ply) |
| Load Index/Speed Rating | 149A8 |
| Load Limit Single | 7150 lbs / 3243 kgs |
| Load Limit Dual | 6292 lbs / 2854 kgs |
| Load Limit Triple | 5863 lbs / 2659 kgs |
| Max PSI | 38 |
