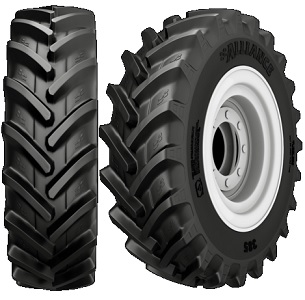

520/85R38 Alliance 385 Agristar(Agri Traction) R-1W 152D 100%
Stock Number:
38540251
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Agricultural Tractor R-1W Radial Drive tire.
- Appropriate lug construction and strength
- Flexibility characteristics
- Strong textile casing, high quality tread and sidewalls
- For use on modern high power/speed tractors
- Smooth, comfortable ride
- Long life
| Stock No. | 38540251 |
| Brand | Alliance |
| Model/Style | 385 Agristar(Agri Traction) |
| Tread Style | (R-1W) Agricultural Deep Tread/Wet Soil |
| Tire Size | 520/85R38 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 46 (71.41" - 75.25") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 389.0 |
| Diameter | 73.0 |
| Width | 20.6 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 33.1 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 152D |
| Load Limit Single | 7850 lbs / 3560 kgs |
| Load Limit Dual | 6908 lbs / 3133 kgs |
| Load Limit Triple | 6437 lbs / 2919 kgs |
| Max PSI | 23 |
