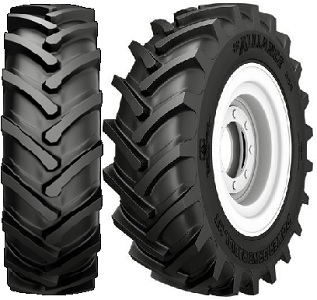

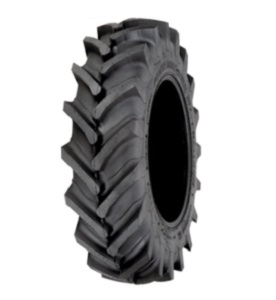

16.9-34 Alliance 356 Severe Duty SB R-1 G (14 Ply), 146A8 100%
Stock Number:
35604513
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Modern diagonal Forestry tire for High Power Tractors on Heavy Duty jobs in Forestry and Heavier Operation in Agriculture. The tire can also be used for Construction Application in Agriculture.
- Specifically designed
- Strong nylon casing and steel belts, high undertread gauge, strong and thick sidewalls, special tread compound and protective mud guard
- High non-skid tread depth
- For high traction abilities, low slip and low fuel consumption
- Promise long tire life under heavy working conditions in the forests, as well as smooth and long lasting work in agriculture
- Offers high traction forces on cohesive and wet soil
| Stock No. | 35604513 |
| Brand | Alliance |
| Model/Style | 356 Severe Duty SB |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 16.9-34 |
| Rim Width | 15" |
| Preferred Rim | |
| RCI Group | 43 (61.01" - 64.35") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 294.0 |
| Diameter | 62.0 |
| Width | 16.9 |
| Rolling Circumference | 184.8 |
| Static Load Radius | 28.4 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | G (14 Ply) |
| Load Index/Speed Rating | 146A8 |
| Load Limit Single | 6600 lbs / 2993 kgs |
| Load Limit Dual | 5808 lbs / 2634 kgs |
| Load Limit Triple | 5412 lbs / 2454 kgs |
| Max PSI | 36 |
