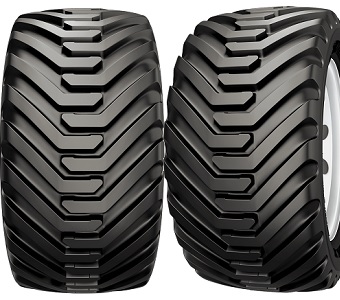

550/60-22.5 Alliance 328 Flotation IMP HS I-3 L (20 Ply), 166D 100%
Stock Number:
32832285
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Agricultural Bias I-3 Flotation tire Specially Designed to Carry Heavy Loads in Harsh Conditions. Available in Steel Belted, Fabric and Heavy Duty (HD) Variants for different sizes.
- High load capacity at low inflation pressures
- Strong nylon construction and compounds
- Apart from its standard applications in trailers, forestry trailers and forest harvesters, the special HD tire is also developed for agricultural baler applications
- Ensures minimal soil compaction
- Provides improved stability over dual-tire configuration
| Stock No. | 32832285 |
| Brand | Alliance |
| Model/Style | 328 Flotation IMP HS |
| Tread Style | (I-3) Agricultural Implement Traction Tread |
| Tire Size | 550/60-22.5 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 38 (46.96" - 49.65") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 199.0 |
| Diameter | 48.7 |
| Width | 21.7 |
| Rolling Circumference | 147.4 |
| Static Load Radius | 22.0 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | L (20 Ply) |
| Load Index/Speed Rating | 166D |
| Load Limit Single | 11700 lbs / 5307 kgs |
| Load Limit Dual | 10296 lbs / 4670 kgs |
| Load Limit Triple | 9594 lbs / 4351 kgs |
| Max PSI | 41 |
