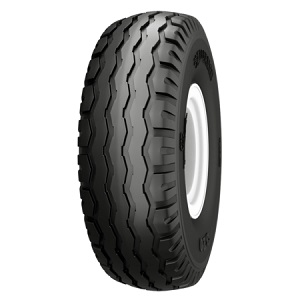

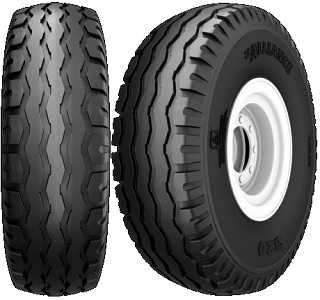

500/50-17 Alliance 320 Ag IMP Low Section I-1 H (16 Ply), 140D 100%
Stock Number:
32013092
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Low-Section Agricultural Implement, Trailer tire Ideal for Modern Farming and Designed for On- and Off-Road Applications.
- Strong nylon construction
- Superior performance and durability
- High load capacity and minimum soil compaction
| Stock No. | 32013092 |
| Brand | Alliance |
| Model/Style | 320 Ag IMP Low Section |
| Tread Style | (I-1) Agricultural Rib Implement |
| Tire Size | 500/50-17 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 33 (36.21" - 38.20") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 115.0 |
| Diameter | 37.0 |
| Width | 19.7 |
| Rolling Circumference | 107.7 |
| Static Load Radius | 16.3 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | H (16 Ply) |
| Load Index/Speed Rating | 140D |
| Load Limit Single | 5520 lbs / 2503 kgs |
| Load Limit Dual | 4857 lbs / 2203 kgs |
| Load Limit Triple | 4526 lbs / 2053 kgs |
| Max PSI | 47 |
