14.5-20 Alliance 317 Multi Purpose Hwy MPT R-4 E (10 Ply), 132G 100%
Stock Number:
31714907
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

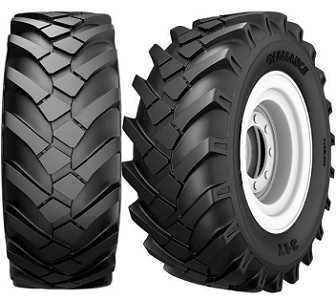

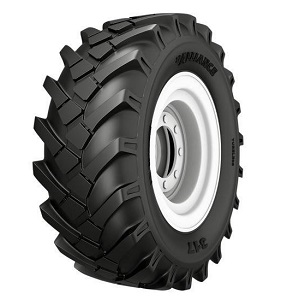

Agricultural Bias R-4 Multi-Purpose tire Designed for Applications that require High Traction.
- Engineered to provide the best performance for on and off road services in tough weather conditions
- 45° lug along with the high rubber to void ratio center
- Strong nylon carcass construction and rugged compound
- Provides excellent traction to drive wheels
- Provides superior on-road characteristics
- Resist hazards and debris in all applications
| Stock No. | 31714907 |
| Brand | Alliance |
| Model/Style | 317 Multi Purpose Hwy MPT |
| Tread Style | (R-4) Agricultural Industrial Tractor |
| Tire Size | 14.5-20 |
| Rim Width | 20" |
| Preferred Rim | |
| RCI Group | 36 (42.41" - 44.60") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 124.0 |
| Diameter | 43.1 |
| Width | 14.0 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 0.0 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | E (10 Ply) |
| Load Index/Speed Rating | 132G |
| Load Limit Single | 4400 lbs / 1995 kgs |
| Load Limit Dual | 3872 lbs / 1756 kgs |
| Load Limit Triple | 3608 lbs / 1636 kgs |
| Max PSI | 0 |
