12.4-24 Alliance 304 Bias R-1 D (8 Ply), 100%
Stock Number:
30401107
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications

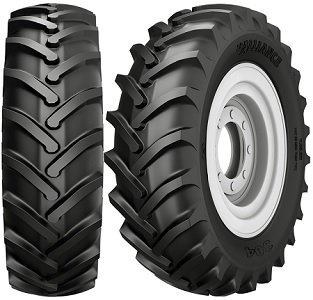

Agricultural R-1 Drive Wheel tire for Rear Tractor Applications. Recommended for Hillside Operations and for Occasional Short Drives On-the-Road.
- Knife like lugs
- Double angle design with wide space between lugs
- 45° angle bar with center studs
- Strong nylon carcass
- Designed for deeper penetration of the ground
- Ensures efficient self cleaning properties in any kind of soil
- Provides better resistance to side slip and continuous rolling
- Guards against mechanical failures and moisture deterioration
| Stock No. | 30401107 |
| Brand | Alliance |
| Model/Style | 304 Bias |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 12.4-24 |
| Rim Width | 11" |
| Preferred Rim | |
| RCI Group | 37 (44.61" - 46.95") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TT) Tubetype |
| Weight | 92.04 |
| Diameter | 45.7 |
| Width | 12.4 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 21.0 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | D (8 Ply) |
| Load Index/Speed Rating | |
| Load Limit Single | 0 lbs / 0 kgs |
| Load Limit Dual | 0 lbs / 0 kgs |
| Load Limit Triple | 0 lbs / 0 kgs |
| Max PSI | 33 |
