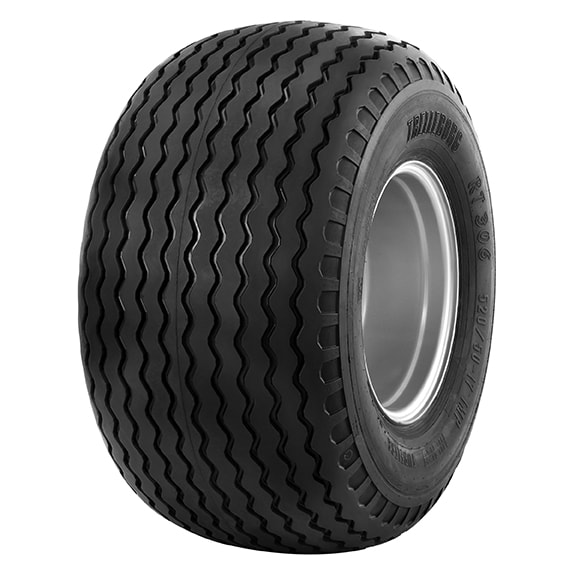

520/50-17 Trelleborg T306 Implement HF-1/I-1 159A8 100%
Stock Number:
1323200
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Implement metric tire for trailers, spreaders, balers, plows, drills.
- Rounded shoulders offer soft ground contact with minimal damage when turning
- Low rolling resistance on road transport
| Stock No. | 1323200 |
| Brand | Trelleborg |
| Model/Style | T306 Implement |
| Tread Style | (HF-1) High Flotation Shallow Tread, (I-1) Agricultural Rib Implement |
| Tire Size | 520/50-17 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 33 (36.21" - 38.20") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 122.0 |
| Diameter | 37.5 |
| Width | 20.3 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 15.9 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | |
| Load Index/Speed Rating | 159A8 |
| Load Limit Single | 9650 lbs / 4377 kgs |
| Load Limit Dual | 8492 lbs / 3851 kgs |
| Load Limit Triple | 7913 lbs / 3589 kgs |
| Max PSI | 52 |
