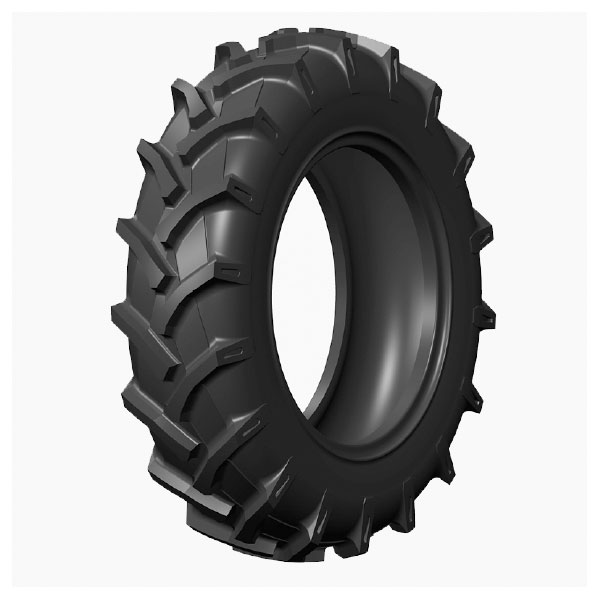

13.6-24 Trelleborg TM90 R-1 D (8 Ply), 123A8 100%
Stock Number:
1123700
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
The new TM90 offers a complete range of sizes for tractors between 50 and 160 HP. Engineered as a tubeless tire, the new R-1 tread pattern can be used in a variety of application, both in the field and on the road.
- Wide lug nose assures extra life on hard surface while the special compound applied provides long wear capability
- Dual angled lugs ensure a comfortable ride on the road and additional traction capacity in the field
| Stock No. | 1123700 |
| Brand | Trelleborg |
| Model/Style | TM90 |
| Tread Style | (R-1) Agricultural Regular Tread |
| Tire Size | 13.6-24 |
| Rim Width | 11.25", 11.5", 11.75", 11", 12" |
| Preferred Rim | |
| RCI Group | 38 (46.96" - 49.65") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 132.0 |
| Diameter | 47.6 |
| Width | 13.8 |
| Rolling Circumference | 0.0 |
| Static Load Radius | 22.4 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | D (8 Ply) |
| Load Index/Speed Rating | 123A8 |
| Load Limit Single | 3420 lbs / 1551 kgs |
| Load Limit Dual | 3009 lbs / 1364 kgs |
| Load Limit Triple | 2804 lbs / 1271 kgs |
| Max PSI | 29 |
