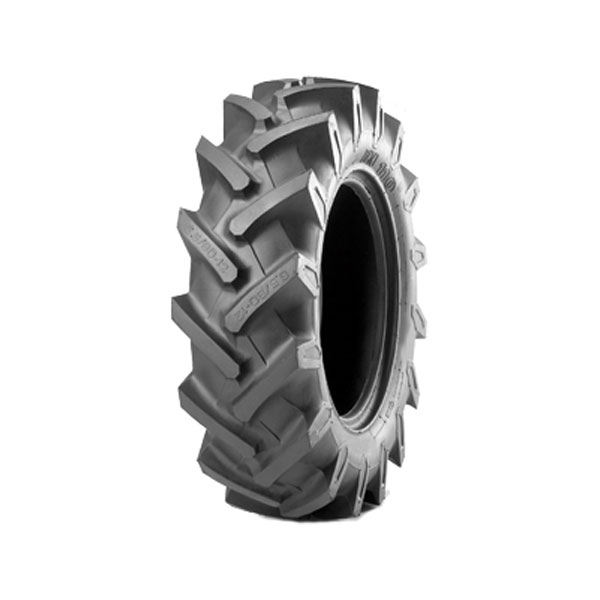

5.00-15 Trelleborg IM110 Implement I-3 C (6 Ply), 88A8 100%
Stock Number:
0199800
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Suitable for use on medium-low powered farm machinery, the lug shape and groove base of the IM110, with its inter-lug terraces and veining, gives excellent traction. The differentiated rigidity of the whole tire section also enables it to keep itself clean, thus further improving traction.
- The tread pattern allows maximum use of this tire in both field and road operations
Stock No. | 0199800 |
Brand | Trelleborg |
Model/Style | IM110 Implement |
Tread Style | (I-3) Agricultural Implement Traction Tread |
Tire Size | 5.00-15 |
Rim Width | 3.19", 3.5", 3", 4.25", 4.38", 4.5", 4" |
Preferred Rim | |
RCI Group | 26 (25.16" - 26.5") |
Casing Technology | |
Casing Application | |
Tire Compound | |
Belt Construction | |
Sidewall Style | |
TT/TL | (TT) Tubetype |
Weight | 14.3 |
Diameter | 26.0 |
Width | 5.1 |
Rolling Circumference | 78.1 |
Static Load Radius | 11.8 |
Flat Plate Area | 0 |
Tread Width | 0.0 |
Ply Rating | C (6 Ply) |
Load Index/Speed Rating | 88A8 |
Load Limit Single | 1230 lbs / 557 kgs |
Load Limit Dual | 1082 lbs / 490 kgs |
Load Limit Triple | 1008 lbs / 457 kgs |
Max PSI | 50 |
