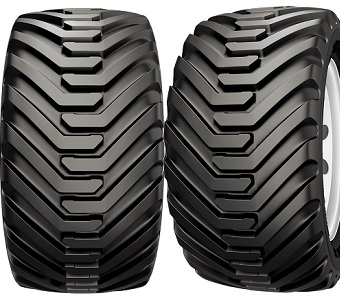

500/60-22.5 Alliance 328 Flotation IMP Value Plus I-3 H (16 Ply), 163A8 100%
Stock Number:
32828108
NEW
TIRE
Availability
Not Available
Shipping & Delivery
Nationwide shipping is available for this item.
Due to the nature of LTL shipments, delivery by the estimated date is not guaranteed. NTS Tire Supply is not responsible for delays in transit.
Specifications
Agricultural Bias Flotation Implement I-3 tire Specially Designed for Low End Applications such as Balers, Wagons and other Agricultural Implements.
- Moderate traction flotation profile
- Displays excellent flotation and self-cleaning characteristics
- Provides maximum soil protection and low compaction
| Stock No. | 32828108 |
| Brand | Alliance |
| Model/Style | 328 Flotation IMP Value Plus |
| Tread Style | (I-3) Agricultural Implement Traction Tread |
| Tire Size | 500/60-22.5 |
| Rim Width | 16" |
| Preferred Rim | |
| RCI Group | 37 (44.61" - 46.95") |
| Casing Technology | |
| Casing Application | |
| Tire Compound | |
| Belt Construction | |
| Sidewall Style | |
| TT/TL | (TL) Tubeless |
| Weight | 160.0 |
| Diameter | 46.1 |
| Width | 19.7 |
| Rolling Circumference | 139.3 |
| Static Load Radius | 20.1 |
| Flat Plate Area | 0 |
| Tread Width | 0.0 |
| Ply Rating | H (16 Ply) |
| Load Index/Speed Rating | 163A8 |
| Load Limit Single | 10700 lbs / 4853 kgs |
| Load Limit Dual | 9416 lbs / 4271 kgs |
| Load Limit Triple | 8774 lbs / 3979 kgs |
| Max PSI | 46 |
